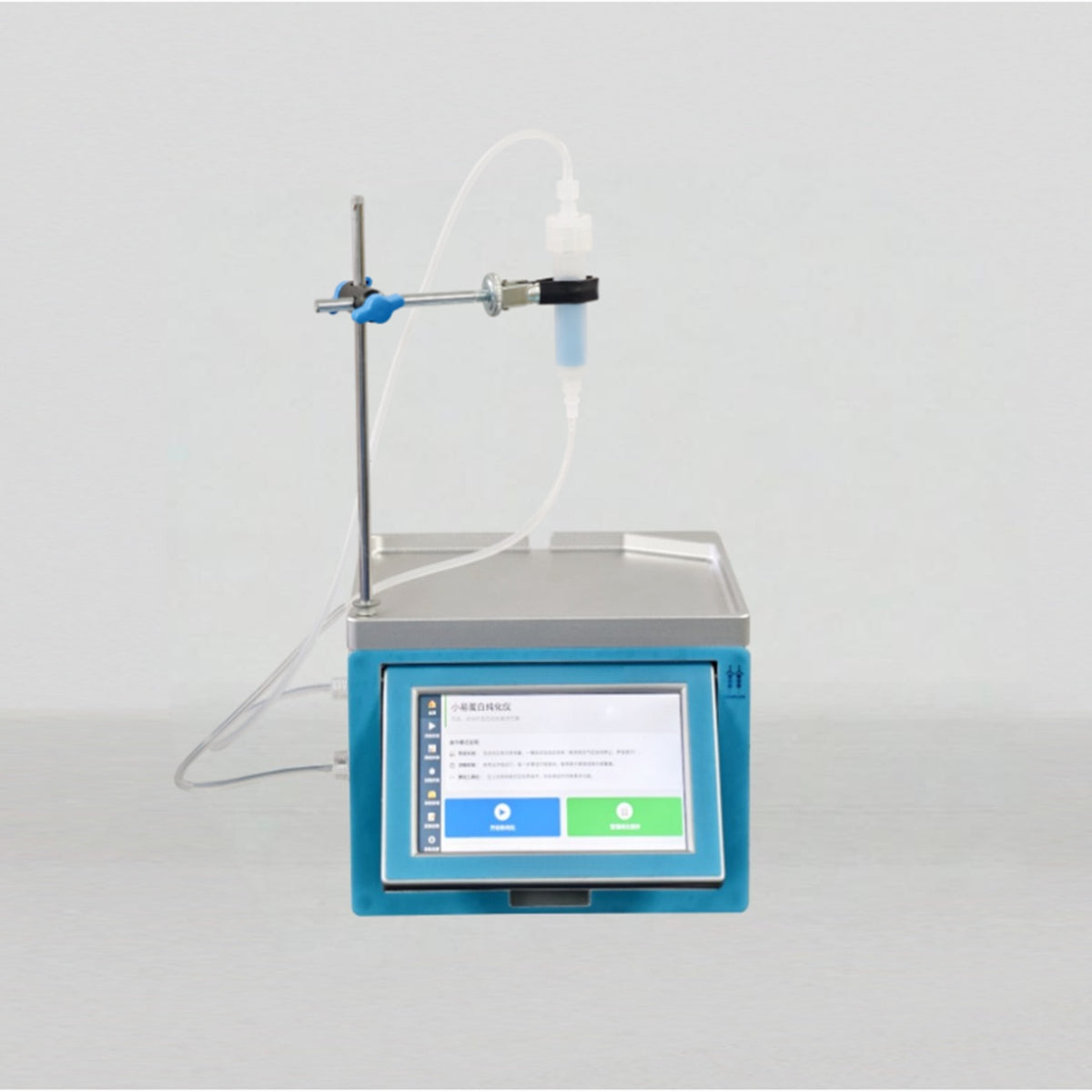

Automatic Protein Purification Instrument

Product features:
1. Equipped with a high-sensitivity liquid level detector, it automatically stops when sample loading is complete, preventing the prepacked column from running dry.
2. The entire sample loading process without watching.
3. Applications: Gravity columns, desalting columns, molecular sieves, Ni columns, antibody affinity purification;
4. Instrument easy to use, no need training, zero barrier. People can start experiments immediately by one-click to startup;
5. Precision and Stability: Intelligent system avoids human error, achieving data repeatability as high as 99%.
6. 10mm Long Optical Path Detection: Sensitivity increased by 3 times, easily capture low-concentration protein signals;
7. Micro Sample Volume mode: Saves precious samples, especially suitable for rare protein research. Easily achieve 50μl sample loading to the column.
8. Deep UV LED Light Source: Lifespan exceeds 10,000 hours.Maintenance cost reduced by 90%;
9. 6-inch HD touch screen: Parameter setting and Experiment process monitoring at your fingertips.
10. support Zoom on LCD Touch Screen to observe micro peaks.
11. Automatic sample shortage pause function with window and sound alerts. The bubble sensor detects air bubbles in the pipeline and Instrument automatically pauses. After confirmation to continue, the instrument expels air through a bypass to prevent purification column from drying out.
12. Weighs only 3kg, mini size; Easily fits into 2-8℃ refrigerator; Meets low-temperature purification needs;
13. Acridone Desalting System
14. Precisely capture protein peaks, desalting, fluorescent labels. Clearly distinguish between protein peaks and acridone peaks;
15. Compatible with various desalting prepacked columns and various protein chromatography prepacked columns for immediate use,saving time on selecting prepacked columns;
16. By using the process experiment mode, you can efficiently perform molecular sieve chromatography, antibody affinity purification, ion exchange chromatography, hydrophobic chromatography, desalting, buffer exchange, and nickel column affinity chromatography. This instrument can be used for basic separation and complex sample processing.
17. Collection Curve can perfectly Simulates the OD Value at the Collection Port.

Instrument Specifications:
Name: Protein Purification System
Fluid Drive Pump :Peristaltic Pump
Flow Rate Range: 0.1-10 ml/min
System Pressure: ≤0.7MPa
Column Holder: Max. Clamping Diameter 4.5 cm
Solution Empty Detection: Automatic Stop, Alarm Prompt;
Bubble Detection: Ultrasonic Bubble Sensor, Automatic Bubble Removal;
Protein Detection Light Source: Deep UV LED
Protein Detection Wavelength: 280nm
Detection Cell Volume: 32 μl
Detection Path Length: 10 mm
Compatible Tubing Inner Diameter: Φ (1-3) mm
Display: 6-inch Color Android LCD Touch Screen
Screen Dimensions: 134 mm x 76 mm
Power Supply: 12V
Operating Temperature: 0-40℃ (Can be placed in 2-8℃ refrigerator)
Relative Humidity: <95%
Wireless Connectivity: 2.4G WiFi, Bluetooth;
Power Consumption: 36W
Weight: 3kg
Dimensions (Main Unit): 204 mm *171 mm *154 mm.
